Add a Context Menu

Introduction

A plugin may provide functionality triggered by context menu options.

Doing this involves creating menu entry nodes directly in the context menu tree.

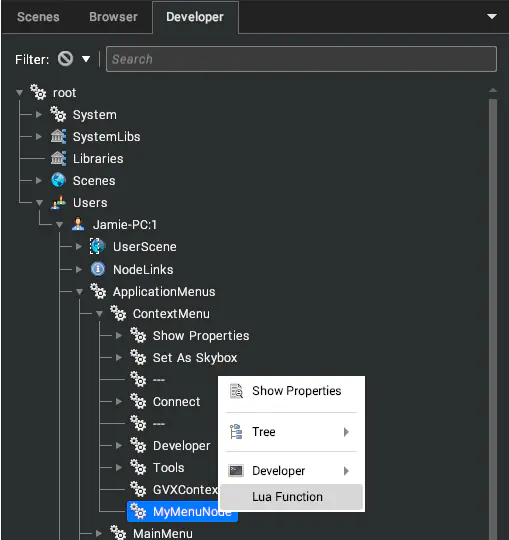

The context menu is located in the local user's tree. This is visible in the Developer tree (with the User Interface / Advanced / Developer Admin Mode setting enabled).

Node Creation

The local user node (VRGetThisUser) contains the context menu, which is accessible by searching for "ApplicationMenus/ContextMenu" using VRFind.

From here, any nodes created will appear in the root of the menu. Menu nodes can be nested to create sub-menus.

The type of node to create is an ApplicationMenuEntry.

Example Code

C

PLUGIN_ENTRY_POINT int VRTREE_APIENTRY VRPInit()
{
  VRPLUGIN_LOADVRTREE;

  // get the user node
  HNode user = VRGetThisUser();

  // find the context menu
  HNode menuRoot = VRFind(user, "ApplicationMenus/ContextMenu");

  // identify the version of the menu entry metanode (plugin compatibility)
  char entryMetaName[100];
  VRCurrentMetaNodeVersion("ApplicationMenuEntry", entryMetaName, 100);

  // add a new menu item
  HNode menuItem = VRCreateNode(menuRoot, entryMetaName, "MyMenuNode");

  // set the caption for the gui
  VRSetPropertyString(menuItem, "Caption", "My Menu Item");

  VRCloseNodeHandle(menuItem);
  VRCloseNodeHandle(menuRoot);
  VRCloseNodeHandle(user);
}

C++

PLUGIN_ENTRY_POINT int VRTREE_APIENTRY VRPInit()
{
  VRPLUGIN_LOADVRTREE;

  // get the user node
  HNodeR user = VRGetThisUser();

  // find the context menu
  HNodeR menuRoot = VRFind(user, "ApplicationMenus/ContextMenu");

  // identify the version of the menu entry metanode (plugin compatibility)
  char entryMetaName[100];
  VRCurrentMetaNodeVersion("ApplicationMenuEntry", entryMetaName, 100);

  // add a new menu item
  HNodeR menuItem = VRCreateNode(menuRoot,
                                 VRCurrentMetaNodeVersion("ApplicationMenuEntry"),
                                 "MyMenuNode");

  // set the caption for the gui
  VRSetPropertyString(menuItem, "Caption", "My Menu Item");
}

Lua

local function init()
  -- existing initialisation code...

  -- get the menu root
  local menuRoot = vrLocalUserNode():find("ApplicationMenus/ContextMenu")

  -- create the entry directly - Lua operates in unversioned metanode names.
  local menuItem = vrCreateNode("ApplicationMenuEntry", "MyMenuNode", menuRoot)

  -- set the caption for the gui
  menuItem.Caption = "Lua Function";
end

Setting up a Callback

Adding the menu function alone doesn't do a lot - it needs to be given a type and a command to execute.

For native plugins, this should be done with the Function type. For Lua, it should be done with the Lua type. These type options allow the Command property to be given the name of the function to call when the menu item is selected.

Native Callback

With the exception of Lua, the callback function should be registered using a unique name, with VRRegisterEventFunction.

This type of callback function does not receive any parameters. Instead it should read the registers set by the event system. For more details, see Foreign Function Interface.

Lua callbacks recieve the selected node in their first parameter. Native callbacks should read the selected node out of the __TargetNode register.

This function can then be referenced by name in the Command property on the menu node.

C

static void myCallback(void* userData)
{
  // do things in response to the menu execution
  HFFIVar nodeVar = VRFFIGetEventRegister("__TargetNode");
  HNode node = VRFFIGetNode(nodeVar);
  //node was the one the context menu was summoned on...
  VRCloseNodeHandle(node);
  VRFFIFree(nodeVar);
}

PLUGIN_ENTRY_POINT int VRTREE_APIENTRY VRPInit()
{
  VRPLUGIN_LOADVRTREE;

  VRRegisterEventFunction("myCallback", &myCallback, NULL);

  ...

  // we can now configure our menu item (see previous example code)
  VRSetPropertyEnum(menuItem, "Type", "TypeFunction");
  VRSetPropertyString(menuItem, "Command", "myCallback");
}

C++

static void myCallback(void* userData)
{
  // do things in response to the menu execution
  HFFIVarR nodeVar = VRFFIGetEventRegister("__TargetNode");
  HNodeR node = VRFFIGetNode(nodeVar);
  //node was the one the context menu was summoned on...
}

PLUGIN_ENTRY_POINT int VRTREE_APIENTRY VRPInit()
{
  VRPLUGIN_LOADVRTREE;

  VRRegisterEventFunction("myCallback", &myCallback, nullptr);

  ...

  // we can now configure our menu item (see previous example code)
  VRSetPropertyEnum(menuItem, "Type", "TypeFunction");
  VRSetPropertyString(menuItem, "Command", "myCallback");
}

Lua

local function myCallback(node)
  -- do things in response to menu execution
  -- node was the one the context menu was summoned on...
end

local function init()
  -- existing initialisation code...

  menuItem.Type = __ApplicationMenuEntry_TypeLua -- types are Lua globals
  menuItem.Command = "testplugin.myCallback" -- prefix our plugin name
end

return {
  -- alongside existing exports
  myCallback = myCallback
}

Other Callback Types

The Type property on the menu item has a few other values which allow more specific behaviour with no need for additional callbacks.

Type	Purpose
TypeApp	Triggers an application command specified in the Command property of the menu item. It may also pass a parameter specified by the UserString property of the menu item, if required.
TypeLua	Triggers a Lua function named in the Command property. It may also pass a parameter specified by the UserString property, if required.
TypeLuaBlock	Executes a block of Lua code specified in the Command property
TypePropertyToggle	Toggles the value of the property named in the Command property (must be a boolean property), on the node at the path specified in the UserString property. The path is relative to this menu node.
TypeSettingToggle	Toggles the value of the setting referenced by the UserString property (must be a boolean setting).
TypeActivate	Triggers an Activate event on the menu node itself, executing any attached EventHandler nodes with events set to Event_Activate
TypeFunction	Calls a named function registered with the script engine (VRRegisterEventFunction)
